Fire Alarm Panel
Conventional (2–16 zone) and addressable (up to 256 devices) fire alarm control panels with 24-hour battery backup. Monitors all detectors, activates sounders, and isolates affected zones.
Zone Capacity
2 to 256+ (addressable)
Battery Backup
24 hrs standby + 30 min alarm
Supply Voltage
230V AC / 24V DC
Fire Alarm Panel
IS:2189 / EN 54
Working Principle
How It Works

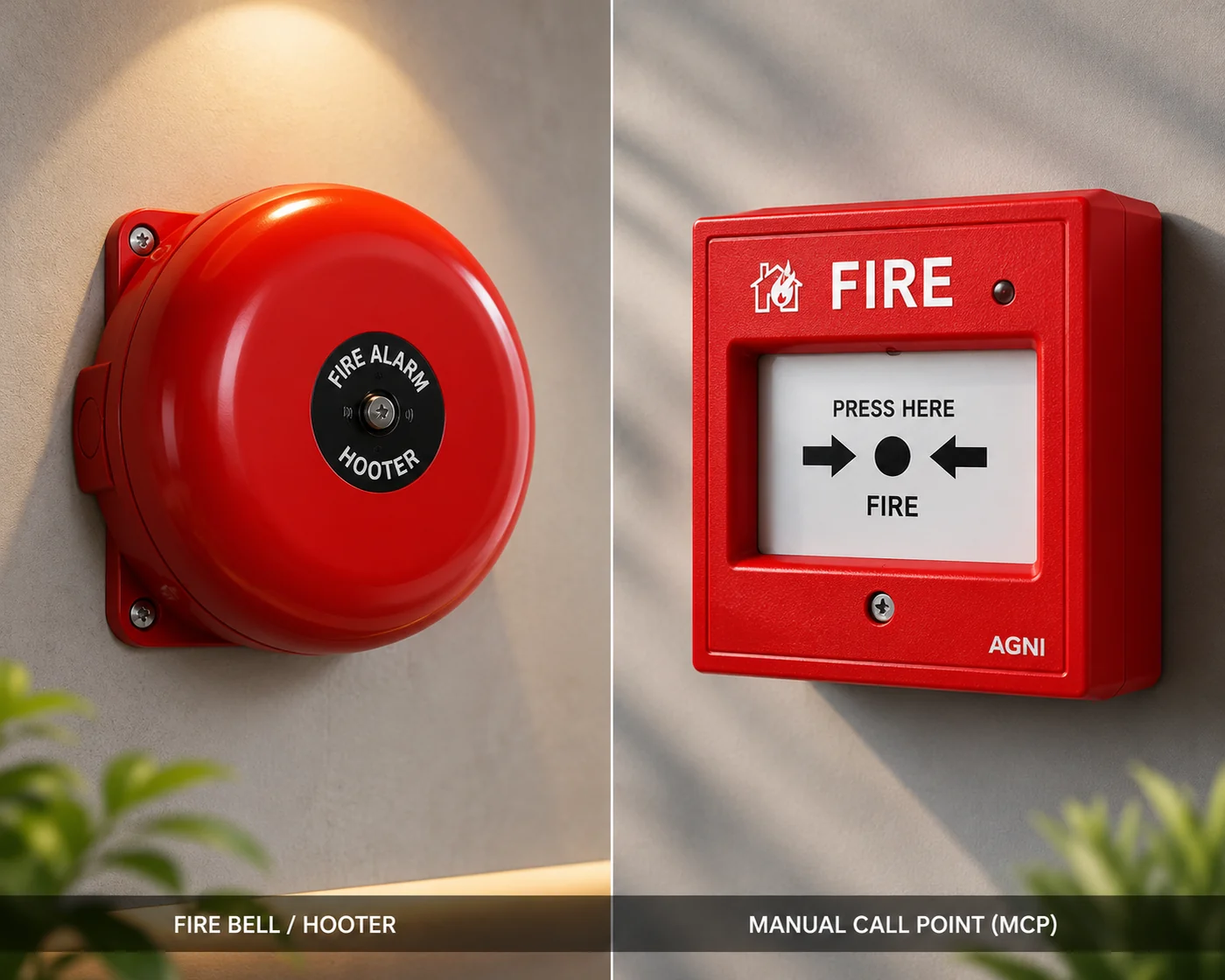

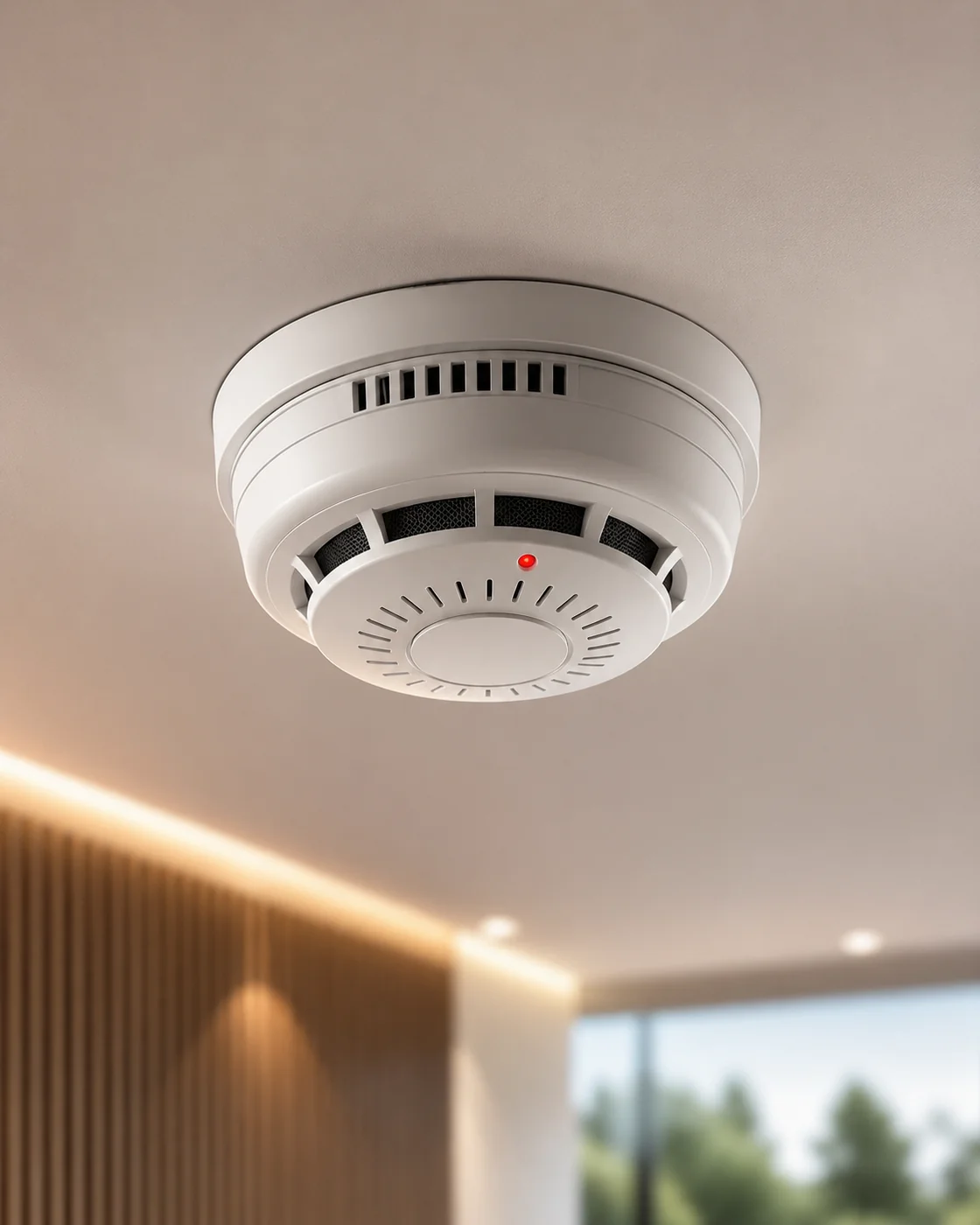

The panel continuously monitors all connected detectors and call points via supervised wiring loops. When a detector senses smoke or heat — or a Manual Call Point is activated — it sends a signal to the panel, which immediately identifies the affected zone, triggers sounders and visual indicators, and can relay the alarm to a remote monitoring centre or Building Management System (BMS).
Product Range
Available Types & Variants
What You Get
Key Features
Use Cases
Where It's Used
At a Glance
Technical Specifications
Zone Capacity
2 to 256+ (addressable)
Battery Backup
24 hrs standby + 30 min alarm
Supply Voltage
230V AC / 24V DC
Operating Temp.
0°C to 49°C
Certification
IS:2189 / EN 54
Keep It Ready
Maintenance & AMC Tips
Test all detectors and call points every 6 months
Check battery condition and replace every 4 years
Inspect cabling connections for corrosion or damage annually
Verify sounder output level and relay functions quarterly
Keep event log records for fire NOC audit compliance
Legal & Compliance Requirement
IS:2189 and NBC 2016 require automatic fire detection and alarm systems in hospitals, hotels, high-rise buildings, educational institutions, and large industrial premises. Fire NOC authorities and insurance underwriters inspect the panel's test and event logs during annual inspections. Without a properly certified panel, a fire NOC cannot be issued.
Get Fire Alarm Panel for Your Premises
Contact our fire safety engineers for a free site visit, product demonstration, and customised quote — no obligation.
